SonicWall NSA 6700 Secure Upgrade Plus - Advanced Edition - 3 Year - 02-SSC-9582

Roll over image to zoom in

SonicWall NSA 6700 Secure Upgrade Plus – Advanced Edition – 3 Year – 02-SSC-9582

Brand: SonicWall

52.072,54 €~~65.090,67 €~~ Tax exc (-20%)

Status:In stock

Recommended for Large Enterprise
ISP Connection Speeds up to 9000 Mbps*
Content Filtering to control access to Internet content
Gateway Antivirus to protect you from viruses & ransomware
Intrusion Prevention Services to detect network attacks
24×7 Technical Services for support, firmware, and warranty
Zero Day Protection from unknown threats
Cloud Management for reporting & remote management
Optional Configuration Support to get you secure
Optional Hassle-Free Management to keep you secure

SKU: 02-SSC-9582 Category: Firewalls Brand: SonicWall

Compare

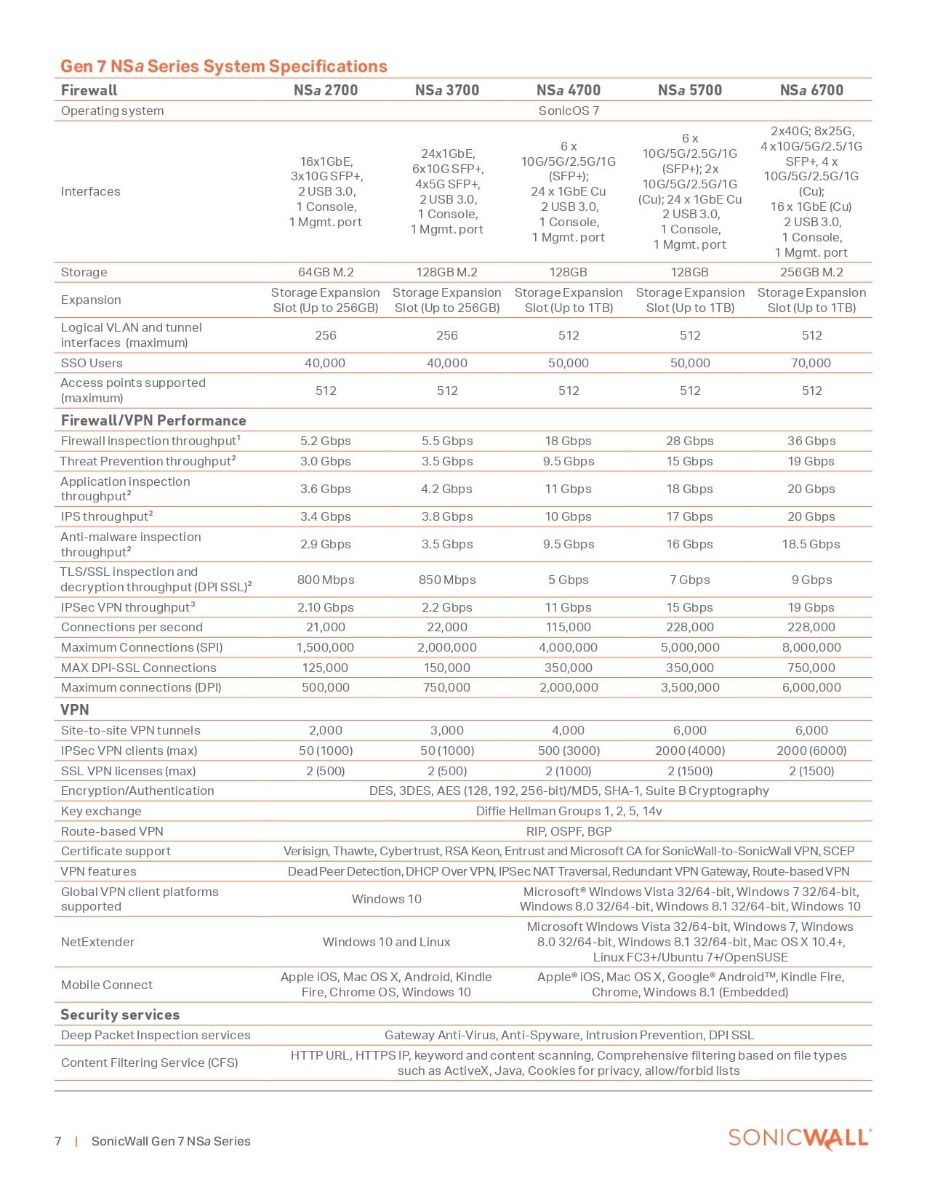

SonicWall NSa & NSsp Enterprise Series Comparison

System Specs	NSa 6700	NSsp 11700	NSsp 13700	NSsp 15700
Interfaces	2x40G, 8x25G, 4x10/5/2.5/1-GbE SFP+, 4x10G/5G/2.5G/1G (Cu), 16x1GbE (Cu), 2 USB 3.0, 1 Console, 1 Mgmt. port	2x100/40-GbE QSFP28, 8x25/10/5/2.5-GbE SFP28, 4x10G/5G/2.5G/1G (SFP+), 4x10G/5G/2.5G/1G (Cu), 16 x 1GbE (Cu), 2 USB 3.0, 1 Console, 1 Mgmt. port	2x100/40-GbE QSFP28, 8x25/10/5/2.5-GbE SFP28, 4x10/5/2.5-GbE SFP+, 4x10/5/2.5/1-GbE Cu, 16x1-GbE, 2 USB 3.0, 1 Console, 1 Mgmt. port	6 x 100-GbE QSFP28, 4 x 40-GbE QSFP+, 16 x 10 GbE SFP+, 3 USB 3.0, 1 Console, 1 Mgmt. port
Total Storage	256GB M.2, Up to 1TB	1.5 TB	1.5 TB	2 x 480 GB SSD
SSO Users	70,000	100,000	100,000	100,000
VLAN Interfaces	512	1024	1024	1024
Max APs	512	512	512	512
Firewall Throughput	36 Gbps	47 Gbps	60 Gbps	105 Gbps
Threat Prevention Throughput	19 Gbps	37 Gbps	45.5 Gbps	82 Gbps
App Inspection Throughput	20 Gbps	7.8 Gbps	10.8 Gbps	11.5 Gbps
IPS Throughput	20 Gbps	37 Gbps	48 Gbps	76.5 Gbps
DPI SSL Throughput	9 Gbps	11.5 Gbps	16.5 Gbps	21 Gbps
VPN Throughput	19 Gbps	26.7 Gbps	29 Gbps	32 Gbps
Max Connections (DPI)	6,000,000	17,000,000	22,000,000	40,000,000
New Connections per Sec	153,000	280,000	280,000	800,000
Site-to-Site VPN Tunnels	6,000	12,000	12,000	25,000
Max IPSec VPN Clients	2,000 (6,000)	2,000 (6,000)	2,000 (6,000)	2,000 (10,000)
Max SSL VPN Licenses	2 (1,500)	100 (3,000)	100 (3,000)	256 (3,000)

SonicWall NSa 6700 series is the best choice for large business firewalls with vanguard security and performance. Secure your network to safeguard against sophisticated threats with top-tier operational efficiency. Ideal for businesses needing a secure network for employees and devices that need constant, secure access to the web. Its zero-touch deployment and cloud-based management allows easy remote administration. Plus, its subscription-based security services ensure that it scales with your business, adapting as your security needs evolve. For more information about the SONICWALL NSA 6700 FIREWALL SECURE UPGRADE PLUS ADVANCED EDITION 3YR, contact us info@securyza.com or call 0690274090.

Features

SonicWall NSa 6700 Secure Upgrade Plus

The SonicWall NSa 6700 Secure Upgrade Plus Essential Edition 2 Year includes a trade-in plan for a legacy firewall (SonicWall & other brand firewalls) at promotional pricing for new security services with hardware in this next-generation firewall (NGFW) designed to meet the security needs of large enterprises. With industry-leading performance and comprehensive security features, the SonicWall Network Security Appliance (NSa) 6700 firewall offers robust protection against advanced threats while maintaining a low total cost of ownership. This SonicWall NSa 6700 is built with the latest hardware components to deliver multi-gigabit threat prevention throughput, ensuring your network remains secure while boosting performance, plus the NSa 6700 can be upgraded with optional SonicWall cloud security services for advanced protection.

Key Features and Benefits

High Performance: The SonicWall NSa 6700 Secure Upgrade Plus Essential Edition 2 Year is engineered with vanguard hardware that delivers exceptional multi-gigabit threat prevention throughput, even for encrypted traffic. This advanced appliance has a firewall inspection throughput of 36 Gbps and threat prevention throughput of 19 Gbps, plus robust protection against sophisticated cyber threats with optimal network performance. The NSa 6700 is built to process high volumes of data while delivering ultimate network security.
Comprehensive Security: Features of the SonicWall NSa 6700 firewall include intrusion prevention, VPN, application control, malware analysis, URL filtering, DNS Security, Geo-IP, and Bot-net services, for your comprehensive security features designed to safeguard networks from diverse cyber threats. The SonicWall NSa-6700 firewall creates a robust security framework that enhances overall network integrity and resilience to counter evolving threats.

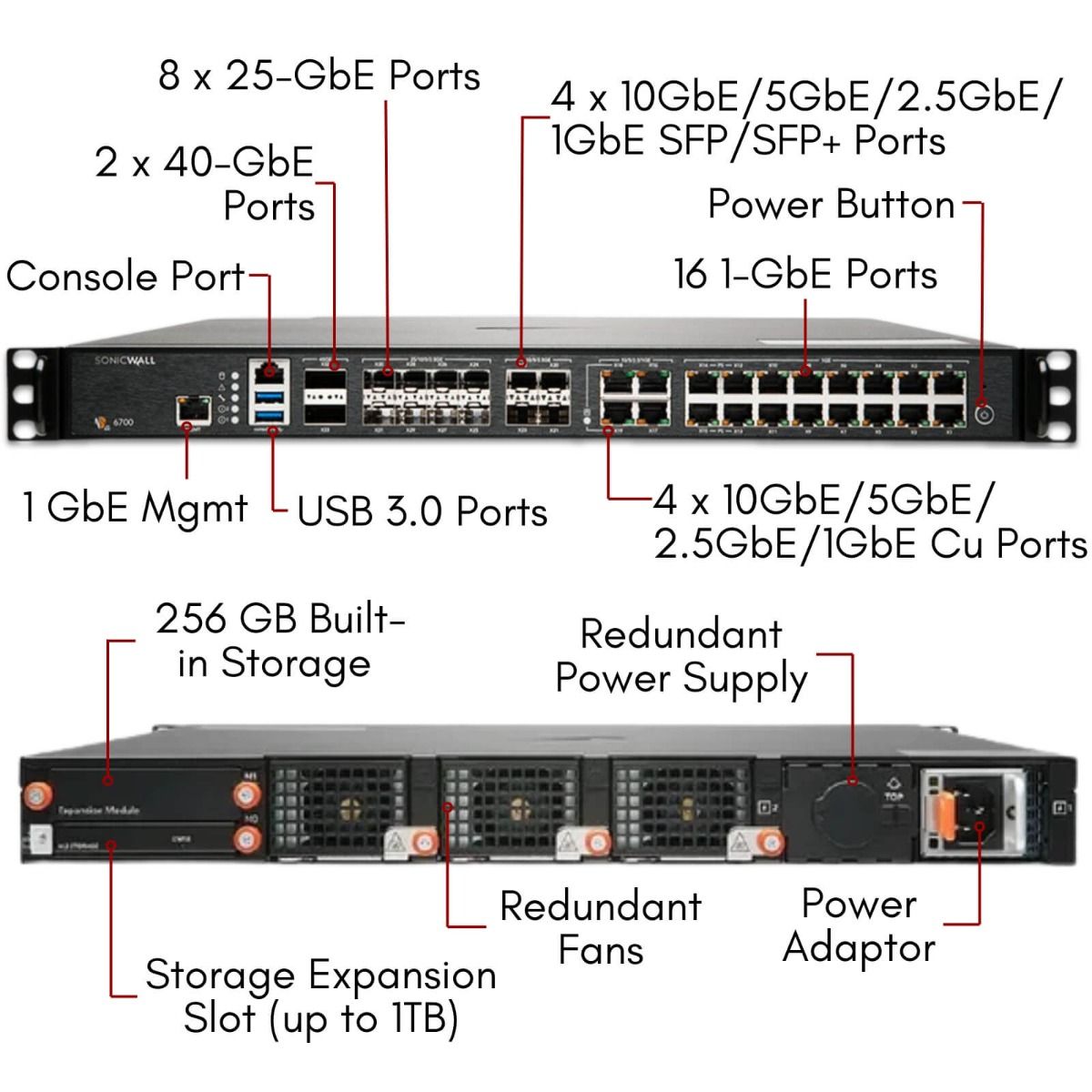

High Port Density: Equipped with 8x25G ports, 2x40G SFP/SFP+ ports, 4x10G/5G/2.5G/1G SFP+ ports, 4x10G/5G/2.5G/1G Cu ports, and 16x1GbE Cu ports, the NSa-6700 supports high availability, clustering, and dual power supplies for network and hardware redundancy, as the best firewall for organizations seeking reliable and efficient network defense solutions in your NSa firewall.
SonicOS 7.0: The SonicWall NSa 6700 Secure Upgrade Plus Essential Edition 2YR comes with the latest operating system provides a modern user interface, intuitive workflows, easy policy configuration, zero-touch deployment, and flexible management to enhance security and operational efficiency in this new SonicWall operating system.
Secure SD-WAN: Advanced networking features in Software-Defined Wide Area Network (secure SD-WAN), dynamic intelligent routing protocols, enhanced high-speed Virtual Private Network (VPN) functionality, robust security measures, traffic optimization techniques, centralized management capabilities, and real-time performance monitoring are supported, making the NSa 6700 series your best choice for your SD-WAN network infrastructure.
Essential Threat Protection: Access to SonicWall’s premier security services, including Capture Advanced Threat Protection (ATP) cloud-based sandboxing and Real-Time Deep Memory Inspection (RTDMI™), ensures comprehensive gateway protection against the most stealthy and dangerous malware, plus zero-day and encrypted threats.

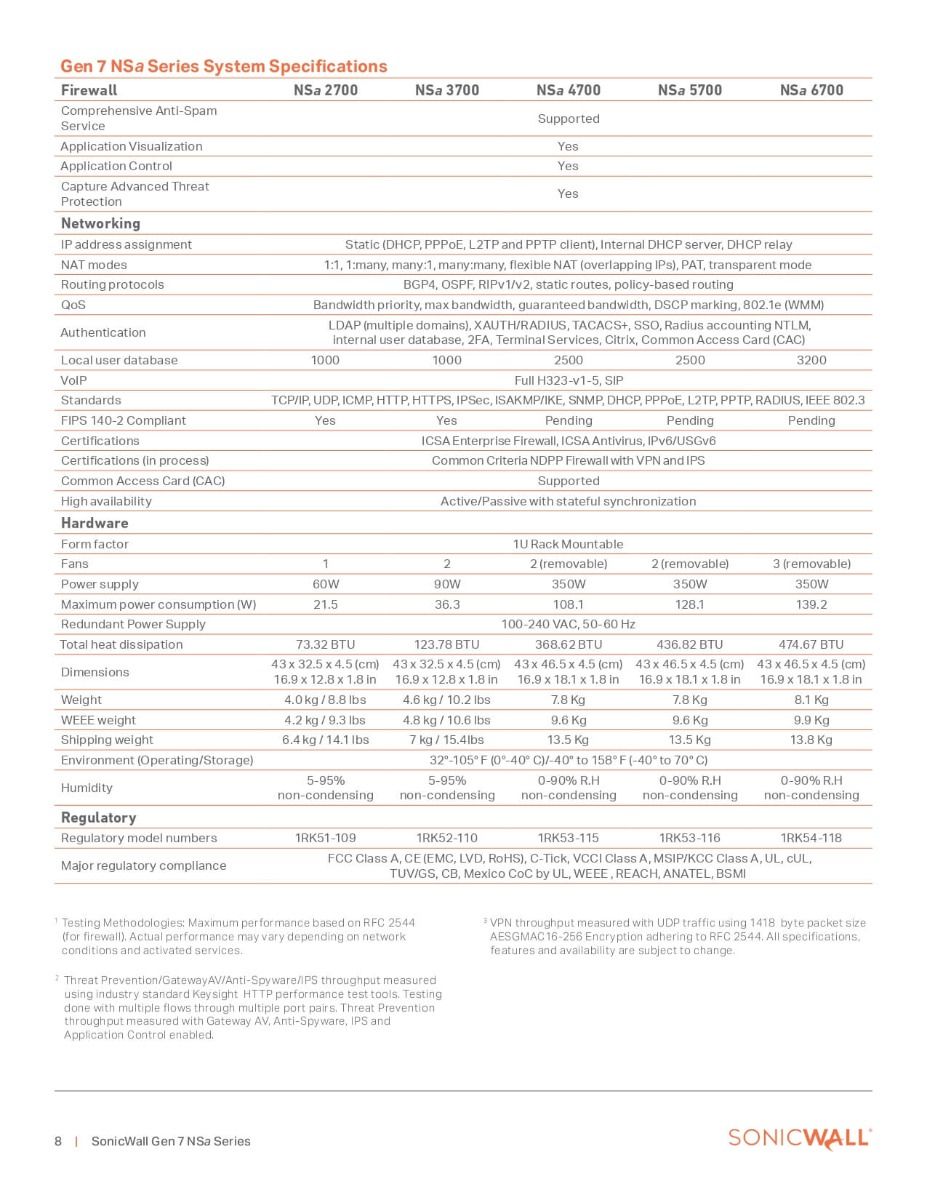

Specifications

Specification	Detail
Operating System	SonicOS 7.0
Interfaces	2x40G SFP/SFP+, 8x25G, 4x10G/5G/2.5G/1G SFP+, 4x10G/5G/2.5G/1G Cu, 16x1GbE Cu, 2 USB 3.0, 1 Console, 1 Management port
Storage	256GB Built-in, Expandable up to 1TB
Firewall Inspection Throughput	36 Gbps
Threat Prevention Throughput	19 Gbps
Application Inspection Throughput	20 Gbps
IPS Throughput	20 Gbps
Anti-Malware Inspection Throughput	18.5 Gbps
TLS/SSL Inspection and Decryption Throughput (DPI SSL)	9 Gbps
IPSec VPN Throughput	19 Gbps
Connections per Second	153,000
Maximum Connections (SPI)	8,000,000
Maximum DPI-SSL Connections	750,000
Maximum Connections (DPI)	6,000,000
Site-to-Site VPN Tunnels	6,000
IPSec VPN Clients (max)	2000 (6000)
SSL VPN Licenses (max)	2 (1500)
Encryption/Authentication	DES, 3DES, AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography
Key Exchange	Diffie Hellman Groups 1, 2, 5, 14v
Route-based VPN	RIP, OSPF, BGP
Certificate Support	Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-to-SonicWall VPN, SCEP
VPN Features	Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN
Global VPN Client Platforms Supported	Windows 10
NetExtender	Windows 10 and Linux
Mobile Connect	Apple® iOS, Mac OS X, Google® Android™, Kindle Fire, Chrome, Windows 8.1 (Embedded)
Deep Packet Inspection Services	Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, DPI SSL
Content Filtering Service (CFS)	HTTP URL, HTTPS IP, keyword and content scanning, comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists
Comprehensive Anti-Spam Service	Supported
Application Visualization	Yes
Application Control	Yes
Capture Advanced Threat Protection	Yes
QoS	Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1e (WMM)
Authentication	LDAP (multiple domains), XAUTH/RADIUS, SSO, Novell, internal user database, Terminal Services, Citrix, Common Access Card (CAC)
Local User Database	3200
VoIP	Full H323-v1-5, SIP
Standards	TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
Certifications (pending)	FIPS 140-2 (with Suite B) Level 2, UC APL, VPNC, IPv6 (Phase 2), ICSA Network Firewall, ICSA Anti-virus, Common Criteria NDPP (Firewall and IPS)
Common Access Card (CAC)	Supported
High Availability	Active/Passive with stateful synchronization
Form Factor	1U Rack Mountable
Fans	2 (removable)
Power Supply	1x350W
Maximum Power Consumption (W)	139.2
Input Power	100-240 VAC, 50-60 Hz
Total Heat Dissipation	474.7 BTU
Dimensions	43 x 46.5 x 4.5 (cm) / 16.9 x 18.1 x 1.8 (in)
Weight	8.1 kg / 17.9 lbs
WEEE Weight	9.9 kg / 21.8 lbs
Shipping Weight	13.8 kg / 30.4 lbs
Environment (Operating/Storage)	32°-105° F (0°-40° C) / -40° to 158° F (-40° to 70° C)
Humidity	0-90% R.H non-condensing

Ideal for

The SonicWall NSa 6700 firewalls design is perfect for large enterprises requiring robust security solutions without sacrificing performance. It is particularly suitable for:x

Enterprises needing high-performance protection against advanced threats.
Organizations that demand high port density and secure SD-WAN capabilities.
Businesses looking to future-proof their network security with multi-gigabit threat analysis performance.
Companies needing secure internet access for distributed branch offices and seamless access to internal resources.

SonicWall Essential Protection: Core Security for Every Business

This SonicWall Essential Protection suite offers foundational security services tailored for small to medium-sized businesses and distributed enterprises. This edition provides the essential tools needed to defend against common cyber threats such as malware, phishing, and network intrusions, ensuring a safe and secure digital environment for business operations.

Plan Features:

Gateway Anti-Virus: Blocks malware at the gateway before it can enter the network.
Anti-Spyware: Prevents spyware from infiltrating the network and compromising sensitive information.
Intrusion Prevention: Actively monitors network traffic to detect and prevent intrusion attempts.
Basic Content Filtering: Restricts access to inappropriate or dangerous websites, enhancing productivity and compliance.
Network Visibility: Provides clear insights into network activity, allowing for better management and security planning.

Benefits:

Immediate Threat Prevention: Quick response to common threats protects network integrity and sensitive data.
Enhanced Productivity: Maintains a focus on productivity by minimizing disruptions caused by malicious or inappropriate content.
Easy to Manage: User-friendly interfaces and straightforward security settings ensure ease of management even for non-specialists.
Cost-Effective Security: Provides a budget-friendly security solution without compromising on essential protective features.
Scalability: Designed to grow with your business, offering easy upgrades to more advanced features as needs evolve.

SonicWall NSa 6700 firewall series is the best choice for organizations looking for top-tier security and performance. Secure your network with the NSa 6700 series to safeguard against sophisticated threats while maintaining operational efficiency. This firewall is ideal for businesses needing a secure network for employees and devices that require constant, secure access to the web. Its zero-touch deployment and cloud-based management for organizations allows easy remote administration. Plus, its subscription-based security services ensure that it scales with your business, adapting as your security needs evolve. For more information about the SONICWALL NSA 6700 SECURE UPGRADE PLUS ESSENTIAL EDITION 2YR, contact us info@securyza.com or call 0690274090. Our team is ready to assist you!

Compare

SonicWall NSa & NSsp Enterprise Series Comparison

System Specs	NSa 6700	NSsp 11700	NSsp 13700	NSsp 15700
Interfaces	2x40G, 8x25G, 4x10/5/2.5/1-GbE SFP+, 4x10G/5G/2.5G/1G (Cu), 16x1GbE (Cu), 2 USB 3.0, 1 Console, 1 Mgmt. port	2x100/40-GbE QSFP28, 8x25/10/5/2.5-GbE SFP28, 4x10G/5G/2.5G/1G (SFP+), 4x10G/5G/2.5G/1G (Cu), 16 x 1GbE (Cu), 2 USB 3.0, 1 Console, 1 Mgmt. port	2x100/40-GbE QSFP28, 8x25/10/5/2.5-GbE SFP28, 4x10/5/2.5-GbE SFP+, 4x10/5/2.5/1-GbE Cu, 16x1-GbE, 2 USB 3.0, 1 Console, 1 Mgmt. port	6 x 100-GbE QSFP28, 4 x 40-GbE QSFP+, 16 x 10 GbE SFP+, 3 USB 3.0, 1 Console, 1 Mgmt. port
Total Storage	256GB M.2, Up to 1TB	1.5 TB	1.5 TB	2 x 480 GB SSD
SSO Users	70,000	100,000	100,000	100,000
VLAN Interfaces	512	1024	1024	1024
Max APs	512	512	512	512
Firewall Throughput	36 Gbps	47 Gbps	60 Gbps	105 Gbps
Threat Prevention Throughput	19 Gbps	37 Gbps	45.5 Gbps	82 Gbps
App Inspection Throughput	20 Gbps	7.8 Gbps	10.8 Gbps	11.5 Gbps
IPS Throughput	20 Gbps	37 Gbps	48 Gbps	76.5 Gbps
DPI SSL Throughput	9 Gbps	11.5 Gbps	16.5 Gbps	21 Gbps
VPN Throughput	19 Gbps	26.7 Gbps	29 Gbps	32 Gbps
Max Connections (DPI)	6,000,000	17,000,000	22,000,000	40,000,000
New Connections per Sec	153,000	280,000	280,000	800,000
Site-to-Site VPN Tunnels	6,000	12,000	12,000	25,000
Max IPSec VPN Clients	2,000 (6,000)	2,000 (6,000)	2,000 (6,000)	2,000 (10,000)
Max SSL VPN Licenses	2 (1,500)	100 (3,000)	100 (3,000)	256 (3,000)

Call Us Email Us

SonicWall NSA 6700 Secure Upgrade Plus - Advanced Edition - 3 Year

$47,338.67

20% OFF! $59,173.34

SonicWall NSa 6700 Secure Upgrade Plus

The SonicWall NSa 6700 Secure Upgrade Plus Advanced Edition 3 Year includes a trade-in plan for a legacy firewall (SonicWall & other brand firewalls) at promotional pricing for new security services with hardware in this next-generation firewall (NGFW) designed to meet the security needs of large enterprises. With industry-leading performance and comprehensive security features, the SonicWall Network Security Appliance (NSa) 6700 firewall offers robust protection against advanced threats while maintaining a low total cost of ownership. This SonicWall NSa 6700 is built with the latest hardware components to deliver multi-gigabit threat prevention throughput, ensuring your network remains secure while boosting performance, plus the NSa 6700 can be upgraded with optional SonicWall cloud security services for advanced protection.

Key Features and Benefits

High Performance: The SonicWall NSa 6700 Secure Upgrade Plus Advanced Edition 3 Year is engineered with vanguard hardware that delivers exceptional multi-gigabit threat prevention throughput, even for encrypted traffic. This advanced appliance has a firewall inspection throughput of 36 Gbps and threat prevention throughput of 19 Gbps, plus robust protection against sophisticated cyber threats with optimal network performance. The NSa 6700 is built to process high volumes of data while delivering ultimate network security.
Comprehensive Security: Features of the SonicWall NSa 6700 firewall include intrusion prevention, VPN, application control, malware analysis, URL filtering, DNS Security, Geo-IP, and Bot-net services, for your comprehensive security features designed to safeguard networks from diverse cyber threats. The SonicWall NSa-6700 firewall creates a robust security framework that enhances overall network integrity and resilience to counter evolving threats.
High Port Density: Equipped with 8x25G ports, 2x40G SFP/SFP+ ports, 4x10G/5G/2.5G/1G SFP+ ports, 4x10G/5G/2.5G/1G Cu ports, and 16x1GbE Cu ports, the NSa-6700 supports high availability, clustering, and dual power supplies for network and hardware redundancy, as the best firewall for organizations seeking reliable and efficient network defense solutions in your NSa firewall.
SonicOS 7.0: The SonicWall NSa 6700 Secure Upgrade Plus Advanced Edition 3YR comes with the latest operating system provides a modern user interface, intuitive workflows, easy policy configuration, zero-touch deployment, and flexible management to enhance security and operational efficiency in this new SonicWall operating system.
Secure SD-WAN: Advanced networking features in Software-Defined Wide Area Network (secure SD-WAN), dynamic intelligent routing protocols, enhanced high-speed Virtual Private Network (VPN) functionality, robust security measures, traffic optimization techniques, centralized management capabilities, and real-time performance monitoring are supported, making the NSa 6700 series your best choice for your SD-WAN network infrastructure.
Essential Threat Protection: Access to SonicWall’s premier security services, including Capture Advanced Threat Protection (ATP) cloud-based sandboxing and Real-Time Deep Memory Inspection (RTDMI™), ensures comprehensive gateway protection against the most stealthy and dangerous malware, plus zero-day and encrypted threats.

Specifications

Specification	Detail
Operating System	SonicOS 7.0
Interfaces	2x40G SFP/SFP+, 8x25G, 4x10G/5G/2.5G/1G SFP+, 4x10G/5G/2.5G/1G Cu, 16x1GbE Cu, 2 USB 3.0, 1 Console, 1 Management port
Storage	256GB Built-in, Expandable up to 1TB
Firewall Inspection Throughput	36 Gbps
Threat Prevention Throughput	19 Gbps
Application Inspection Throughput	20 Gbps
IPS Throughput	20 Gbps
Anti-Malware Inspection Throughput	18.5 Gbps
TLS/SSL Inspection and Decryption Throughput (DPI SSL)	9 Gbps
IPSec VPN Throughput	19 Gbps
Connections per Second	153,000
Maximum Connections (SPI)	8,000,000
Maximum DPI-SSL Connections	750,000
Maximum Connections (DPI)	6,000,000
Site-to-Site VPN Tunnels	6,000
IPSec VPN Clients (max)	2000 (6000)
SSL VPN Licenses (max)	2 (1500)
Encryption/Authentication	DES, 3DES, AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography
Key Exchange	Diffie Hellman Groups 1, 2, 5, 14v
Route-based VPN	RIP, OSPF, BGP
Certificate Support	Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-to-SonicWall VPN, SCEP
VPN Features	Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN
Global VPN Client Platforms Supported	Windows 10
NetExtender	Windows 10 and Linux
Mobile Connect	Apple® iOS, Mac OS X, Google® Android™, Kindle Fire, Chrome, Windows 8.1 (Embedded)
Deep Packet Inspection Services	Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, DPI SSL
Content Filtering Service (CFS)	HTTP URL, HTTPS IP, keyword and content scanning, comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists
Comprehensive Anti-Spam Service	Supported
Application Visualization	Yes
Application Control	Yes
Capture Advanced Threat Protection	Yes
QoS	Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1e (WMM)
Authentication	LDAP (multiple domains), XAUTH/RADIUS, SSO, Novell, internal user database, Terminal Services, Citrix, Common Access Card (CAC)
Local User Database	3200
VoIP	Full H323-v1-5, SIP
Standards	TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
Certifications (pending)	FIPS 140-2 (with Suite B) Level 2, UC APL, VPNC, IPv6 (Phase 2), ICSA Network Firewall, ICSA Anti-virus, Common Criteria NDPP (Firewall and IPS)
Common Access Card (CAC)	Supported
High Availability	Active/Passive with stateful synchronization
Form Factor	1U Rack Mountable
Fans	2 (removable)
Power Supply	1x350W
Maximum Power Consumption (W)	139.2
Input Power	100-240 VAC, 50-60 Hz
Total Heat Dissipation	474.7 BTU
Dimensions	43 x 46.5 x 4.5 (cm) / 16.9 x 18.1 x 1.8 (in)
Weight	8.1 kg / 17.9 lbs
WEEE Weight	9.9 kg / 21.8 lbs
Shipping Weight	13.8 kg / 30.4 lbs
Environment (Operating/Storage)	32°-105° F (0°-40° C) / -40° to 158° F (-40° to 70° C)
Humidity	0-90% R.H non-condensing

Ideal for

The SonicWall NSa 6700 firewalls design is perfect for large enterprises requiring robust security solutions without sacrificing performance. It is particularly suitable for:x

Enterprises needing high-performance protection against advanced threats.
Organizations that demand high port density and secure SD-WAN capabilities.
Businesses looking to future-proof their network security with multi-gigabit threat analysis performance.
Companies needing secure internet access for distributed branch offices and seamless access to internal resources.

SonicWall Advanced Protection: Enhanced Security for Demanding Environments

This SonicWall Advanced Protection suite offers a robust security solution designed for environments requiring enhanced protection against sophisticated cyber threats. This package includes advanced features like application intelligence, real-time deep memory inspection, and multi-engine sandboxing, providing an additional layer of defense to keep critical systems and data safe.

Plan Features:

Application Intelligence: Delivers fine-grained control over applications, enabling organizations to manage and secure application usage effectively.
Real-Time Deep Memory Inspection (RTDMI): Detects and blocks malware that hides inside encrypted traffic, significantly reducing the risk of advanced threats.
Multi-Engine Sandboxing: Analyzes suspicious files in a virtual environment to identify and stop new and unknown threats before they enter the network.
Advanced Content Filtering: Offers comprehensive content filtering capabilities that go beyond basic solutions to provide enhanced control over online content accessed through the network.
Enhanced Network Visibility: Provides advanced analytics tools for deeper insight into network traffic and security threats, facilitating proactive management and response.

Benefits:

Superior Threat Protection: Offers protection against sophisticated and emerging threats with advanced security capabilities.
Regulatory Compliance: Helps meet stringent compliance requirements with advanced security measures and reporting features.
Optimized Network Performance: Maintains high network performance while enforcing robust security measures.
Customizable Security Policies: Enables tailored security settings that align with specific business needs and threat environments.
Future-Ready Security: Prepares businesses for future threats with continuous updates and next-generation technologies.

SonicWall NSa 6700 firewall series is the best choice for organizations looking for top-tier security and performance. Secure your network with the NSa 6700 series to safeguard against sophisticated threats while maintaining operational efficiency. This firewall is ideal for businesses needing a secure network for employees and devices that require constant, secure access to the web. Its zero-touch deployment and cloud-based management for organizations allows easy remote administration. Plus, its subscription-based security services ensure that it scales with your business, adapting as your security needs evolve. For more information about the SONICWALL NSA 6700 SECURE UPGRADE PLUS ADVANCED EDITION 3YR, contact us info@securyza.com or call 0690274090. Our team is ready to assist you!

More Information

More Information
Product Name	SonicWall NSA 6700 Secure Upgrade Plus – Advanced Edition – 3 Year
SKU	02-SSC-9582
Manufacturer	SonicWall
ISP Connection Speed	8000 – 10600 Mbps
Form Factor	Rackmount
Feature Edition	Advanced Edition
Service Length	3 Year License
Promotional	Trade-In Program
Data Sheet	View Sheet

Features

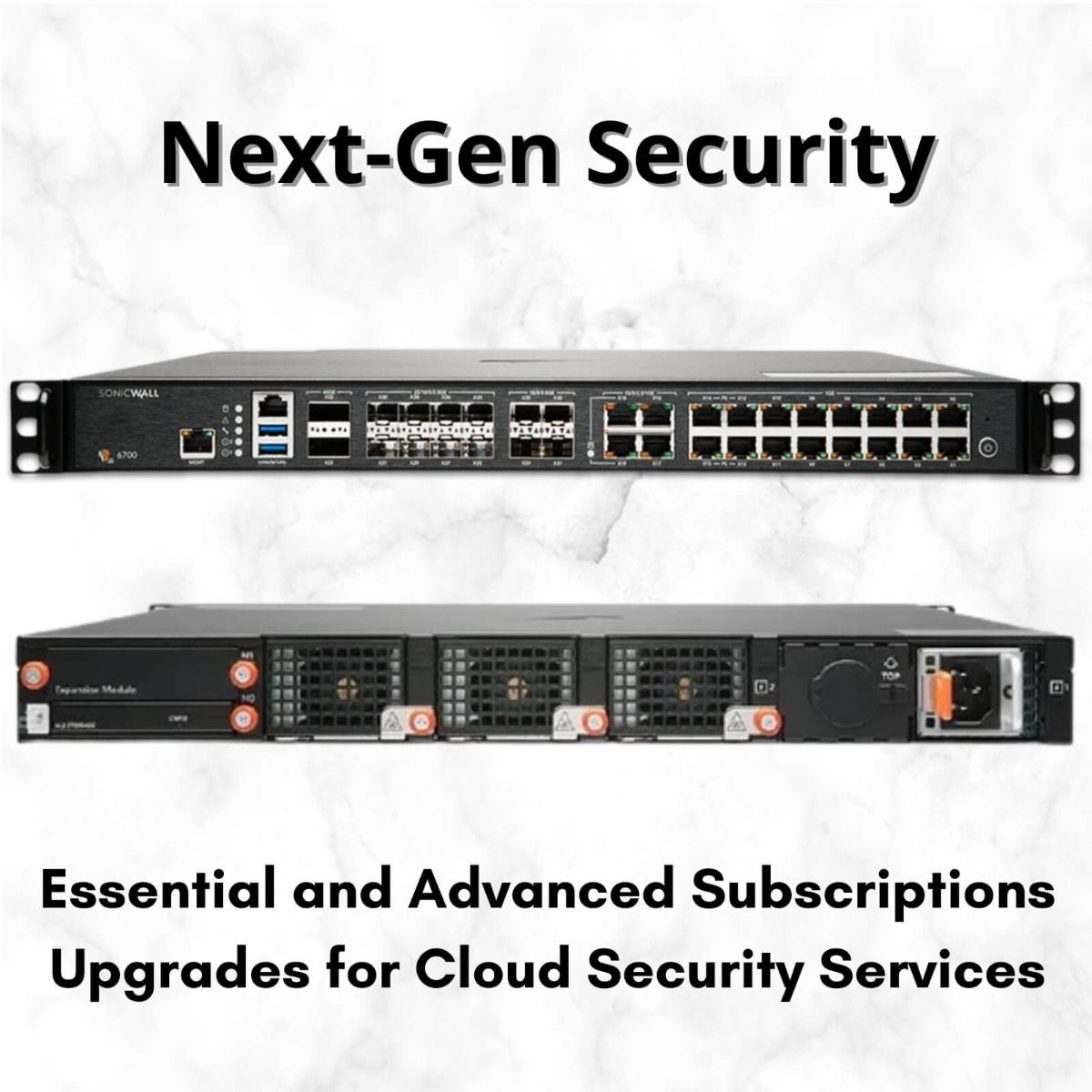

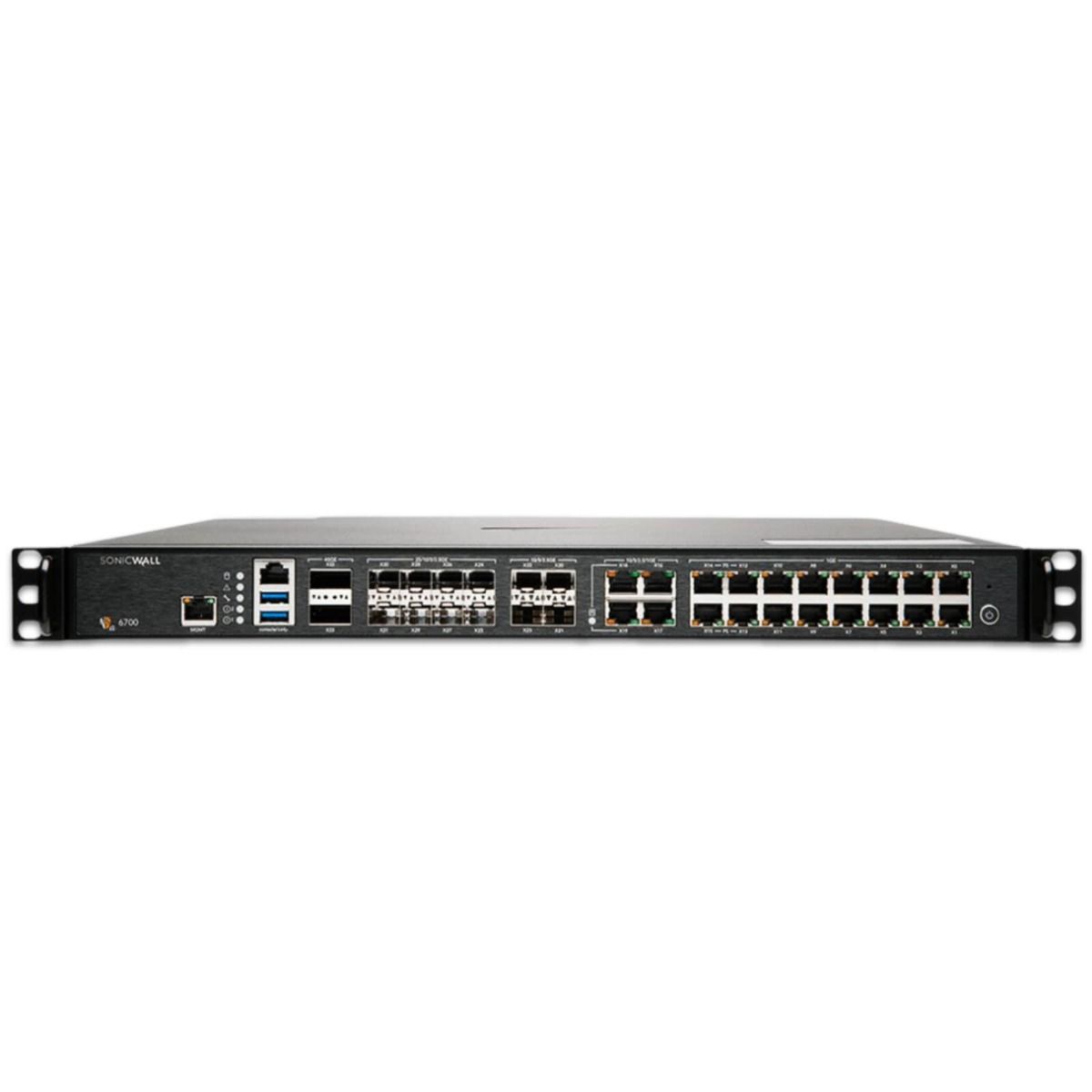

SonicWall NSa 6700 Secure Upgrade Plus

Key Features and Benefits

High Performance: The SonicWall NSa 6700 Secure Upgrade Plus Essential Edition 2 Year is engineered with vanguard hardware that delivers exceptional multi-gigabit threat prevention throughput, even for encrypted traffic. This advanced appliance has a firewall inspection throughput of 36 Gbps and threat prevention throughput of 19 Gbps, plus robust protection against sophisticated cyber threats with optimal network performance. The NSa 6700 is built to process high volumes of data while delivering ultimate network security.
Comprehensive Security: Features of the SonicWall NSa 6700 firewall include intrusion prevention, VPN, application control, malware analysis, URL filtering, DNS Security, Geo-IP, and Bot-net services, for your comprehensive security features designed to safeguard networks from diverse cyber threats. The SonicWall NSa-6700 firewall creates a robust security framework that enhances overall network integrity and resilience to counter evolving threats.
High Port Density: Equipped with 8x25G ports, 2x40G SFP/SFP+ ports, 4x10G/5G/2.5G/1G SFP+ ports, 4x10G/5G/2.5G/1G Cu ports, and 16x1GbE Cu ports, the NSa-6700 supports high availability, clustering, and dual power supplies for network and hardware redundancy, as the best firewall for organizations seeking reliable and efficient network defense solutions in your NSa firewall.
SonicOS 7.0: The SonicWall NSa 6700 Secure Upgrade Plus Essential Edition 2YR comes with the latest operating system provides a modern user interface, intuitive workflows, easy policy configuration, zero-touch deployment, and flexible management to enhance security and operational efficiency in this new SonicWall operating system.
Secure SD-WAN: Advanced networking features in Software-Defined Wide Area Network (secure SD-WAN), dynamic intelligent routing protocols, enhanced high-speed Virtual Private Network (VPN) functionality, robust security measures, traffic optimization techniques, centralized management capabilities, and real-time performance monitoring are supported, making the NSa 6700 series your best choice for your SD-WAN network infrastructure.
Essential Threat Protection: Access to SonicWall’s premier security services, including Capture Advanced Threat Protection (ATP) cloud-based sandboxing and Real-Time Deep Memory Inspection (RTDMI™), ensures comprehensive gateway protection against the most stealthy and dangerous malware, plus zero-day and encrypted threats.

Specifications

Specification	Detail
Operating System	SonicOS 7.0
Interfaces	2x40G SFP/SFP+, 8x25G, 4x10G/5G/2.5G/1G SFP+, 4x10G/5G/2.5G/1G Cu, 16x1GbE Cu, 2 USB 3.0, 1 Console, 1 Management port
Storage	256GB Built-in, Expandable up to 1TB
Firewall Inspection Throughput	36 Gbps
Threat Prevention Throughput	19 Gbps
Application Inspection Throughput	20 Gbps
IPS Throughput	20 Gbps
Anti-Malware Inspection Throughput	18.5 Gbps
TLS/SSL Inspection and Decryption Throughput (DPI SSL)	9 Gbps
IPSec VPN Throughput	19 Gbps
Connections per Second	153,000
Maximum Connections (SPI)	8,000,000
Maximum DPI-SSL Connections	750,000
Maximum Connections (DPI)	6,000,000
Site-to-Site VPN Tunnels	6,000
IPSec VPN Clients (max)	2000 (6000)
SSL VPN Licenses (max)	2 (1500)
Encryption/Authentication	DES, 3DES, AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography
Key Exchange	Diffie Hellman Groups 1, 2, 5, 14v
Route-based VPN	RIP, OSPF, BGP
Certificate Support	Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-to-SonicWall VPN, SCEP
VPN Features	Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN
Global VPN Client Platforms Supported	Windows 10
NetExtender	Windows 10 and Linux
Mobile Connect	Apple® iOS, Mac OS X, Google® Android™, Kindle Fire, Chrome, Windows 8.1 (Embedded)
Deep Packet Inspection Services	Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, DPI SSL
Content Filtering Service (CFS)	HTTP URL, HTTPS IP, keyword and content scanning, comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists
Comprehensive Anti-Spam Service	Supported
Application Visualization	Yes
Application Control	Yes
Capture Advanced Threat Protection	Yes
QoS	Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1e (WMM)
Authentication	LDAP (multiple domains), XAUTH/RADIUS, SSO, Novell, internal user database, Terminal Services, Citrix, Common Access Card (CAC)
Local User Database	3200
VoIP	Full H323-v1-5, SIP
Standards	TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
Certifications (pending)	FIPS 140-2 (with Suite B) Level 2, UC APL, VPNC, IPv6 (Phase 2), ICSA Network Firewall, ICSA Anti-virus, Common Criteria NDPP (Firewall and IPS)
Common Access Card (CAC)	Supported
High Availability	Active/Passive with stateful synchronization
Form Factor	1U Rack Mountable
Fans	2 (removable)
Power Supply	1x350W
Maximum Power Consumption (W)	139.2
Input Power	100-240 VAC, 50-60 Hz
Total Heat Dissipation	474.7 BTU
Dimensions	43 x 46.5 x 4.5 (cm) / 16.9 x 18.1 x 1.8 (in)
Weight	8.1 kg / 17.9 lbs
WEEE Weight	9.9 kg / 21.8 lbs
Shipping Weight	13.8 kg / 30.4 lbs
Environment (Operating/Storage)	32°-105° F (0°-40° C) / -40° to 158° F (-40° to 70° C)
Humidity	0-90% R.H non-condensing

Ideal for

The SonicWall NSa 6700 firewalls design is perfect for large enterprises requiring robust security solutions without sacrificing performance. It is particularly suitable for:x

Enterprises needing high-performance protection against advanced threats.
Organizations that demand high port density and secure SD-WAN capabilities.
Businesses looking to future-proof their network security with multi-gigabit threat analysis performance.
Companies needing secure internet access for distributed branch offices and seamless access to internal resources.

SonicWall Essential Protection: Core Security for Every Business

Plan Features:

Gateway Anti-Virus: Blocks malware at the gateway before it can enter the network.
Anti-Spyware: Prevents spyware from infiltrating the network and compromising sensitive information.
Intrusion Prevention: Actively monitors network traffic to detect and prevent intrusion attempts.
Basic Content Filtering: Restricts access to inappropriate or dangerous websites, enhancing productivity and compliance.
Network Visibility: Provides clear insights into network activity, allowing for better management and security planning.

Benefits:

Immediate Threat Prevention: Quick response to common threats protects network integrity and sensitive data.
Enhanced Productivity: Maintains a focus on productivity by minimizing disruptions caused by malicious or inappropriate content.
Easy to Manage: User-friendly interfaces and straightforward security settings ensure ease of management even for non-specialists.
Cost-Effective Security: Provides a budget-friendly security solution without compromising on essential protective features.
Scalability: Designed to grow with your business, offering easy upgrades to more advanced features as needs evolve.

Compare

SonicWall NSa & NSsp Enterprise Series Comparison

System Specs	NSa 6700	NSsp 11700	NSsp 13700	NSsp 15700
Interfaces	2x40G, 8x25G, 4×10/5/2.5/1-GbE SFP+, 4x10G/5G/2.5G/1G (Cu), 16x1GbE (Cu), 2 USB 3.0, 1 Console, 1 Mgmt. port	2×100/40-GbE QSFP28, 8×25/10/5/2.5-GbE SFP28, 4x10G/5G/2.5G/1G (SFP+), 4x10G/5G/2.5G/1G (Cu), 16 x 1GbE (Cu), 2 USB 3.0, 1 Console, 1 Mgmt. port	2×100/40-GbE QSFP28, 8×25/10/5/2.5-GbE SFP28, 4×10/5/2.5-GbE SFP+, 4×10/5/2.5/1-GbE Cu, 16×1-GbE, 2 USB 3.0, 1 Console, 1 Mgmt. port	6 x 100-GbE QSFP28, 4 x 40-GbE QSFP+, 16 x 10 GbE SFP+, 3 USB 3.0, 1 Console, 1 Mgmt. port
Total Storage	256GB M.2, Up to 1TB	1.5 TB	1.5 TB	2 x 480 GB SSD
SSO Users	70,000	100,000	100,000	100,000
VLAN Interfaces	512	1024	1024	1024
Max APs	512	512	512	512
Firewall Throughput	36 Gbps	47 Gbps	60 Gbps	105 Gbps
Threat Prevention Throughput	19 Gbps	37 Gbps	45.5 Gbps	82 Gbps
App Inspection Throughput	20 Gbps	7.8 Gbps	10.8 Gbps	11.5 Gbps
IPS Throughput	20 Gbps	37 Gbps	48 Gbps	76.5 Gbps
DPI SSL Throughput	9 Gbps	11.5 Gbps	16.5 Gbps	21 Gbps
VPN Throughput	19 Gbps	26.7 Gbps	29 Gbps	32 Gbps
Max Connections (DPI)	6,000,000	17,000,000	22,000,000	40,000,000
New Connections per Sec	153,000	280,000	280,000	800,000
Site-to-Site VPN Tunnels	6,000	12,000	12,000	25,000
Max IPSec VPN Clients	2,000 (6,000)	2,000 (6,000)	2,000 (6,000)	2,000 (10,000)
Max SSL VPN Licenses	2 (1,500)	100 (3,000)	100 (3,000)	256 (3,000)

SonicWall NSA 6700 Secure Upgrade Plus – Advanced Edition – 3 Year – 02-SSC-9582

Compare

SonicWall NSa & NSsp Enterprise Series Comparison

Features

SonicWall NSa 6700 Secure Upgrade Plus

Key Features and Benefits

Specifications

Ideal for

SonicWall Essential Protection: Core Security for Every Business

Plan Features:

Benefits:

SonicWall NSa & NSsp Enterprise Series Comparison

Request Emailed Quote

Thank you. We have received your quote request.

Fast Delivery

Easy Returns

Secure Checkout

Best Price Assured

SonicWall NSA 6700 Secure Upgrade Plus - Advanced Edition - 3 Year

SonicWall NSa 6700 Secure Upgrade Plus

Key Features and Benefits

Specifications

Ideal for

SonicWall Advanced Protection: Enhanced Security for Demanding Environments

Plan Features:

Benefits:

SonicWall NSa 6700 Secure Upgrade Plus

Key Features and Benefits

Specifications

Ideal for

SonicWall Essential Protection: Core Security for Every Business

Plan Features:

Benefits:

SonicWall NSa & NSsp Enterprise Series Comparison

Request Emailed Quote

Thank you. We have received your quote request.

Fast Delivery

Easy Returns

Secure Checkout

Best Price Assured

SonicWall NSA 6700 Secure Upgrade Plus – Advanced Edition – 3 Year

Additional information

Related products

Main Menu

SonicWall NSA 6700 Secure Upgrade Plus - Advanced Edition - 3 Year - 02-SSC-9582

Quanti dispositivi sono connessi alla tua rete?

Prevedi di aggiungere altri utenti il ​​prossimo anno?

Qual è la velocità della tua connessione Internet?

Come implementerete questo firewall?

Hai una marca di firewall preferita?

Scegli la tua marca preferita.

Stai cercando altre soluzioni per la sicurezza di rete?

Hai bisogno di un firewall con funzionalità wireless?

Desideri che Securyza.com installi e configuri il firewall prima che venga spedito?

Dove dovremmo inviare la soluzione proposta?

Prevedi di aggiungere altri utenti il prossimo anno?
